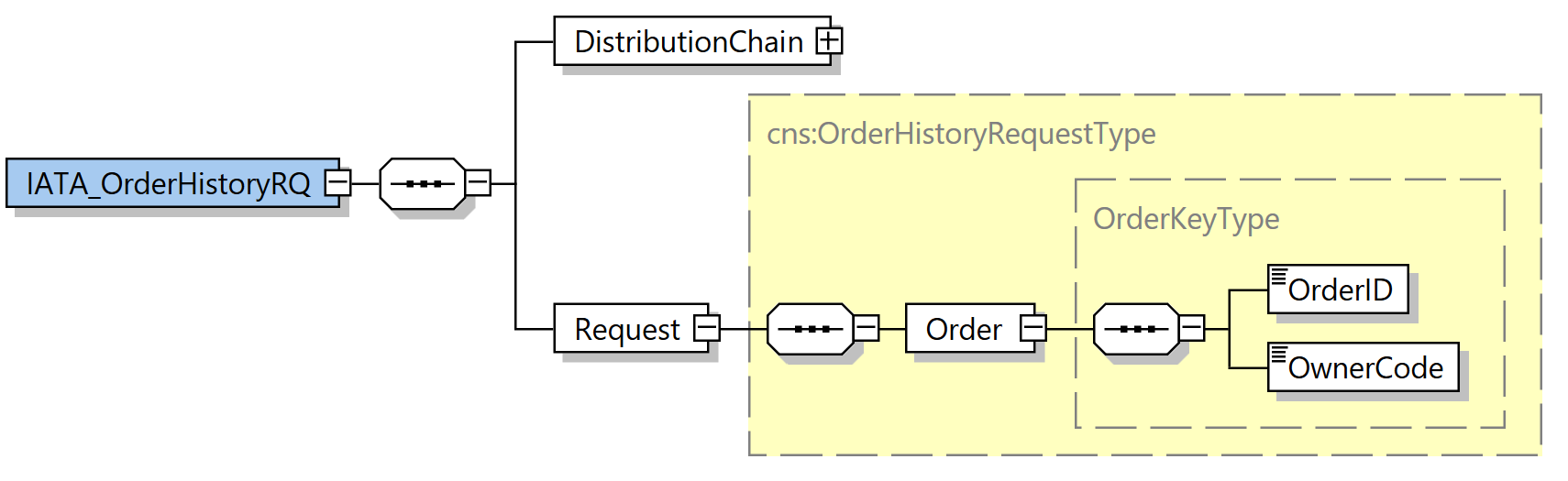

Schema Data Model

Request Definition

<DistributionChain>
XML Snippet
Element
Details
DataType
M/O/C
<DistributionChain>
An instance of a distribution channel. That is, the set of organisations involved in the development of the current transaction.
M
//All the APIs should contain the carrier code in one of the ordinals, except AirShopping.

//For Direct agents:

<DistributionChain>
    <DistributionChainLink>
        <ContactInfo>
            <ContactInfoID>Agent</ContactInfoID>
            <EmailAddress>
                <EmailAddressText>agent@test.com</EmailAddressText>
            </EmailAddress>
        </ContactInfo>
        <Ordinal>1</Ordinal>
        <OrgRole>Seller</OrgRole>
        <ParticipatingOrg>
            <Name>Travel Agent</Name>
            <OrgID>IATA_Number</OrgID>
        </ParticipatingOrg>
    </DistributionChainLink>
    <DistributionChainLink>
        <Ordinal>2</Ordinal>
        <OrgRole>Carrier</OrgRole>
        <ParticipatingOrg>
            <Name>VIRGIN ATLANTIC</Name>
            <OrgID>VS</OrgID>
        </ParticipatingOrg>
    </DistributionChainLink>
</DistributionChain>

//For Indirect Agent (Via aggregator):

<DistributionChain>
         <DistributionChainLink>
                  <Ordinal>1</Ordinal>
                  <OrgRole>Seller</OrgRole>
                  <ParticipatingOrg>
                              <Name>TravelAgent_name</Name>
                              <OrgID>IATA_number</OrgID>
                  </ParticipatingOrg>
         </DistributionChainLink>
         <DistributionChainLink>
                  <Ordinal>2</Ordinal>
                  <OrgRole>Distributor</OrgRole>
                  <ParticipatingOrg>
                              <Name>Aggregator_name</Name>
                              <OrgID>TIDS_number</OrgID>
                  </ParticipatingOrg>
         </DistributionChainLink>
             <DistributionChainLink>
                  <Ordinal>3</Ordinal>
                  <OrgRole>Carrier</OrgRole>
                  <ParticipatingOrg>
                        <Name>VIRGIN ATLANTIC</Name>
                        <OrgID>VS</OrgID>
                  </ParticipatingOrg>
             </DistributionChainLink>
</DistributionChain>
<Request>
XML Snippet
Element
Details
DataType
M/O/C
<Order>
The criteria used to identify and retrieve the Order.
Char(2)
O
<OrderID>
A carrier-assigned identifier that uniquely identifies a specific Order across multiple messages.
Decimal
M
<OwnerCode>
This carrier code will be 'VS'
Char(2)
M
<Order xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
    <OrderID>VS932TOIMFU26</OrderID>
    <OwnerCode>VS</OwnerCode>
</Order>
