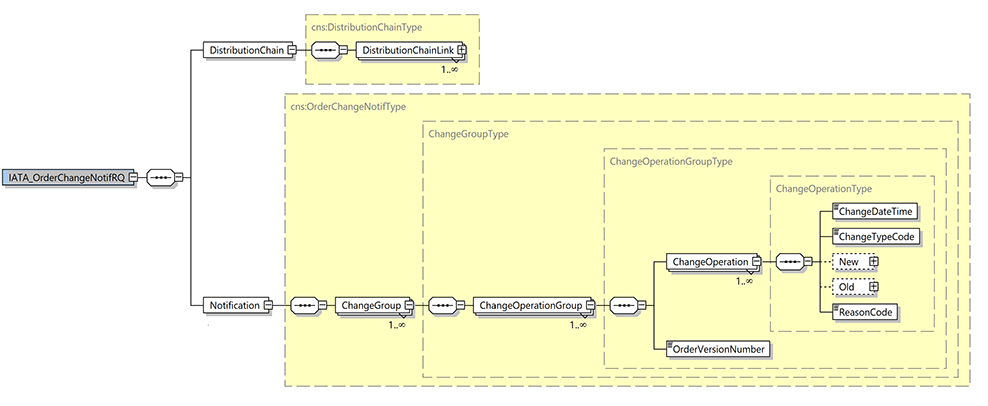

Schema Data Model


Notification Definition

<DistributionChain>
XML Snippet
Element
Details
DataType
M/O/C
<DistributionChain>
An instance of a distribution channel. That is, the set of organisations involved in the development of the current transaction.
<DistributionChain>
    <DistributionChainLink xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
        <Ordinal>1</Ordinal>
        <OrgRole>Carrier</OrgRole>
        <ParticipatingOrg>
            <Name>Virgin Atlantic Airways</Name>
            <OrgID>VS</OrgID>
        </ParticipatingOrg>
    </DistributionChainLink>
    <DistributionChainLink xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
        <Ordinal>2</Ordinal>
        <OrgRole>Seller</OrgRole>
        <ParticipatingOrg>
            <Name>TestAgent</Name>
            <OrgID>12345678</OrgID>
        </ParticipatingOrg>
    </DistributionChainLink>
</DistributionChain>

<ChangeGroup>
XML Snippet
Element
Details
DataType
M/O/C
<ChangeOperation>
Change Operation is an instruction on addition, replacement or deletion of elements within an Order.
XML Example
<Notification>
    <ChangeGroup xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
        <ChangeOperationGroup>
            <ChangeOperation>
                <ChangeDateTime>2025-07-31T11:15:16.000576</ChangeDateTime>
                <ChangeTypeCode>2</ChangeTypeCode>
                <New>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </New>
                <Old>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </Old>
                <ReasonCode>100</ReasonCode>
            </ChangeOperation>
            <OrderVersionNumber>2</OrderVersionNumber>
        </ChangeOperationGroup>
    </ChangeGroup>
</Notification>
List [1..*]
<ChangeDateTime>
Date and time the change was reported.
XML Example
<Notification>
    <ChangeGroup xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
        <ChangeOperationGroup>
            <ChangeOperation>
                <ChangeDateTime>2025-07-31T11:15:16.000576</ChangeDateTime>
                <ChangeTypeCode>2</ChangeTypeCode>
                <New>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </New>
                <Old>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </Old>
                <ReasonCode>100</ReasonCode>
            </ChangeOperation>
            <OrderVersionNumber>2</OrderVersionNumber>
        </ChangeOperationGroup>
    </ChangeGroup>
</Notification>
DateTime
M
<ChangeTypeCode>
Indicates what type of change. Applicable values:
XML Example
<Notification>
    <ChangeGroup xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
        <ChangeOperationGroup>
            <ChangeOperation>
                <ChangeDateTime>2025-07-31T11:15:16.000576</ChangeDateTime>
                <ChangeTypeCode>2</ChangeTypeCode>
                <New>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </New>
                <Old>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </Old>
                <ReasonCode>100</ReasonCode>
            </ChangeOperation>
            <OrderVersionNumber>2</OrderVersionNumber>
        </ChangeOperationGroup>
    </ChangeGroup>
</Notification>
Note:
  • FlightNumberChange = 1
  • FlightRetimed = 2
  • FlightCancelled = 3
  • FlightDelayed = 4
  • FlightAdded = 5
Integer
M
<Notification>
    <ChangeGroup xmlns="http://www.iata.org/IATA/2015/EASD/00/IATA_OffersAndOrdersCommonTypes">
        <ChangeOperationGroup>
            <ChangeOperation>
                <ChangeDateTime>2025-07-31T11:15:16.000576</ChangeDateTime>
                <ChangeTypeCode>2</ChangeTypeCode>
                <New>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </New>
                <Old>
                    <DataLists>
					...
                    </DataLists>
                    <Order>
					...
                    </Order>
                </Old>
                <ReasonCode>100</ReasonCode>
            </ChangeOperation>
            <OrderVersionNumber>2</OrderVersionNumber>
        </ChangeOperationGroup>
    </ChangeGroup>
</Notification>

<New>
XML Snippet
Element
Details
DataType
M/O/C
<New>
Represents the details of the changed order.
XML Example
<New>
   <DataLists>
   ...
   </DataLists>
   <Order>
   ...
   </Order>
 </New>
O
<New>
   <DataLists>
   ...
   </DataLists>
   <Order>
   ...
   </Order>
 </New>

<New> - DataLists
XML Snippet
Element
Details
DataType
M/O/C
<DatedMarketingSegmentList>
Marketing Carrier Information
O
<DatedOperatingLegList>
List of flight leg information.
O
<DatedOperatingSegmentList>
Operating Segment info from boarding until destination including subsequent off points with one or more legs.
O
<OriginDestList>
List of Origin and Destination.
O
<PaxJourneyList>
Journey/Bound with associated Flight Segments.
O
<PaxList>
List of Passenger(s).
List [1..*]
M
<PaxSegmentList>
Flight Segment details.
O
<New>
    <DataLists>
        <DatedMarketingSegmentList>
        ...
        </DatedMarketingSegmentList>
        <DatedOperatingLegList>
        ...
        </DatedOperatingLegList>
        <DatedOperatingSegmentList>
        ...
        </DatedOperatingSegmentList>
        <OriginDestList>
        ...
        </OriginDestList>
        <PaxJourneyList>
        ...
        </PaxJourneyList>
        <PaxList>
        ...
        </PaxList>
        <PaxSegmentList>
        ...
        </PaxSegmentList>
    </DataLists>
    <Order>
    ...
    </Order>
</New>

<New> - Order
XML Snippet
Element
Details
DataType
M/O/C
<Order>
Details of the updated order.
XML Example
<New>
  <DataLists>
  ...
  <DataLists>
  <Order>
    <OrderID>VS932TRUZUO25</OrderID>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-1</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-2</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-3</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OwnerCode>VS</OwnerCode>
  </Order>
</New>
O
<OrderID>
Unique identifier of the order.
XML Example
<Order>
   <OrderID>VS932TRUZUO25</OrderID>
   ...
</Order>
Alphanumeric
M
<OrderItem>
Unique Identifier of an OrderItemID
XML Example
<OrderItem>
    <OrderItemID>VS932TRUZUO25-1</OrderItemID>
    <OwnerCode>VS</OwnerCode>
    <Service>
        <BookingRef>
            <BookingEntity>
                <Carrier>
                    <AirlineDesigCode>VS</AirlineDesigCode>
                </Carrier>
            </BookingEntity>
            <BookingID>TRUZUO</BookingID>
        </BookingRef>
        <OrderServiceAssociation>
            <PaxSegmentRef>
                <PaxSegmentRefID>SEG1</PaxSegmentRefID>
            </PaxSegmentRef>
        </OrderServiceAssociation>
        <PaxRefID>ADULT_1</PaxRefID>
        <ServiceID>SV1</ServiceID>
        <StatusCode>CONFIRMED</StatusCode>
    </Service>
    <Service>
        <BookingRef>
            <BookingEntity>
                <Carrier>
                    <AirlineDesigCode>VS</AirlineDesigCode>
                </Carrier>
            </BookingEntity>
            <BookingID>TRUZUO</BookingID>
        </BookingRef>
        <OrderServiceAssociation>
            <PaxSegmentRef>
                <PaxSegmentRefID>SEG2</PaxSegmentRefID>
            </PaxSegmentRef>
        </OrderServiceAssociation>
        <PaxRefID>ADULT_1</PaxRefID>
        <ServiceID>SV2</ServiceID>
        <StatusCode>CONFIRMED</StatusCode>
    </Service>
</OrderItem>
Alphanumeric
M
<Service>
Specific offered service instance.
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG1</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV1</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
List [1..*]
O
<BookingRef>
Information related to the booking.
XML Example
<BookingRef>
    <BookingEntity>
        <Carrier>
            <AirlineDesigCode>VS</AirlineDesigCode>
        </Carrier>
    </BookingEntity>
    <BookingID>TRUZUO</BookingID>
</BookingRef>
O
<BookingEntity>
Booking Entity information.
XML Example
<BookingEntity>
    <Carrier>
        <AirlineDesigCode>VS</AirlineDesigCode>
    </Carrier>
</BookingEntity>
O
<Carrier>
Carrier information.
XML Example
<Carrier>
    <AirlineDesigCode>VS</AirlineDesigCode>
</Carrier>
M
<AirlineDesigCode>
AirlineCode associated to the carrier.
XML Example
<Carrier>
    <AirlineDesigCode>VS</AirlineDesigCode>
</Carrier>
Note: Example: VS as per the current implementation
Alphanumeric
M
<BookingID>
Booking Reference ID (PNR).
XML Example
<BookingRef>
    <BookingEntity>
        <Carrier>
            <AirlineDesigCode>VS</AirlineDesigCode>
        </Carrier>
    </BookingEntity>
    <BookingID>TRUZUO</BookingID>
</BookingRef>
Alphanumeric
M
<DeliveryStatusCode>
Status of the Service Delivery instance.
String
O
<OrderServiceAssociation>
Service Association details within the order.
XML Example
<OrderServiceAssociation>
    <PaxSegmentRef>
        <PaxSegmentRefID>SEG2</PaxSegmentRefID>
    </PaxSegmentRef>
</OrderServiceAssociation>
M
<PaxSegmentRef>

XML Example
<OrderServiceAssociation>
    <PaxSegmentRef>
        <PaxSegmentRefID>SEG2</PaxSegmentRefID>
    </PaxSegmentRef>
</OrderServiceAssociation>
M
<PaxSegmentRefID>
Reference to PaxSegmentID.
XML Example
<OrderServiceAssociation>
    <PaxSegmentRef>
        <PaxSegmentRefID>SEG2</PaxSegmentRefID>
    </PaxSegmentRef>
</OrderServiceAssociation>
M
<PaxRefID>
Pax referenceID
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG2</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV2</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
Alphanumeric
M
<ServiceID>
Unique Service Identifier.
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG2</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV2</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
Alphanumeric
M
<StatusCode>
Status of the Order Service Status instance
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG2</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV2</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
Note:
  • CONFIRMED
  • REQUESTED
  • WAITLISTED
  • CANCELLED
Alphanumeric
O
<OwnerCode>
This will always be 'VS'.
Char(2)
M
<New>
  <DataLists>
  ...
  <DataLists>
  <Order>
    <OrderID>VS932TRUZUO25</OrderID>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-1</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-2</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-3</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OwnerCode>VS</OwnerCode>
  </Order>
</New>

<Old>
XML Snippet
Element
Details
DataType
M/O/C
<Old>
Represents the details of the old order.
XML Example
<Old>
   <DataLists>
   ...
   </DataLists>
   <Order>
   ...
   </Order>
 </Old>
O
<Old>
   <DataLists>
   ...
   </DataLists>
   <Order>
   ...
   </Order>
 </Old>

<Old> - DataLists
XML Snippet
Element
Details
DataType
M/O/C
<DatedMarketingSegmentList>
Marketing Carrier Information
O
<DatedOperatingLegList>
List of flight leg information.
O
<DatedOperatingSegmentList>
Operating Segment info from boarding until destination including subsequent off points with one or more legs.
O
<OriginDestList>
List of Origin and Destination.
O
<PaxJourneyList>
Journey/Bound with associated Flight Segments.
O
<PaxList>
List of Passenger(s).
List [1..*]
M
<PaxSegmentList>
Flight Segment details.
O
<Old>
    <DataLists>
        <DatedMarketingSegmentList>
        ...
        </DatedMarketingSegmentList>
        <DatedOperatingLegList>
        ...
        </DatedOperatingLegList>
        <DatedOperatingSegmentList>
        ...
        </DatedOperatingSegmentList>
        <OriginDestList>
        ...
        </OriginDestList>
        <PaxJourneyList>
        ...
        </PaxJourneyList>
        <PaxList>
        ...
        </PaxList>
        <PaxSegmentList>
        ...
        </PaxSegmentList>
    </DataLists>
    <Order>
    ...
    </Order>
</Old>

<Old> - Order
XML Snippet
Element
Details
DataType
M/O/C
<Order>
Details of the updated order.
XML Example
<New>
  <DataLists>
  ...
  <DataLists>
  <Order>
    <OrderID>VS932TRUZUO25</OrderID>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-1</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-2</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-3</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OwnerCode>VS</OwnerCode>
  </Order>
</New>
O
<OrderID>
Unique identifier of the order.
XML Example
<Order>
   <OrderID>VS932TRUZUO25</OrderID>
   ...
</Order>
Alphanumeric
M
<OrderItem>
Unique Identifier of an OrderItemID
XML Example
<OrderItem>
    <OrderItemID>VS932TRUZUO25-1</OrderItemID>
    <OwnerCode>VS</OwnerCode>
    <Service>
        <BookingRef>
            <BookingEntity>
                <Carrier>
                    <AirlineDesigCode>VS</AirlineDesigCode>
                </Carrier>
            </BookingEntity>
            <BookingID>TRUZUO</BookingID>
        </BookingRef>
        <OrderServiceAssociation>
            <PaxSegmentRef>
                <PaxSegmentRefID>SEG1</PaxSegmentRefID>
            </PaxSegmentRef>
        </OrderServiceAssociation>
        <PaxRefID>ADULT_1</PaxRefID>
        <ServiceID>SV1</ServiceID>
        <StatusCode>CONFIRMED</StatusCode>
    </Service>
    <Service>
        <BookingRef>
            <BookingEntity>
                <Carrier>
                    <AirlineDesigCode>VS</AirlineDesigCode>
                </Carrier>
            </BookingEntity>
            <BookingID>TRUZUO</BookingID>
        </BookingRef>
        <OrderServiceAssociation>
            <PaxSegmentRef>
                <PaxSegmentRefID>SEG2</PaxSegmentRefID>
            </PaxSegmentRef>
        </OrderServiceAssociation>
        <PaxRefID>ADULT_1</PaxRefID>
        <ServiceID>SV2</ServiceID>
        <StatusCode>CONFIRMED</StatusCode>
    </Service>
</OrderItem>
Alphanumeric
M
<Service>
Specific offered service instance.
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG1</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV1</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
List [1..*]
O
<BookingRef>
Information related to the booking.
XML Example
<BookingRef>
    <BookingEntity>
        <Carrier>
            <AirlineDesigCode>VS</AirlineDesigCode>
        </Carrier>
    </BookingEntity>
    <BookingID>TRUZUO</BookingID>
</BookingRef>
O
<BookingEntity>
Booking Entity information.
XML Example
<BookingEntity>
    <Carrier>
        <AirlineDesigCode>VS</AirlineDesigCode>
    </Carrier>
</BookingEntity>
O
<Carrier>
Carrier information.
XML Example
<Carrier>
    <AirlineDesigCode>VS</AirlineDesigCode>
</Carrier>
M
<AirlineDesigCode>
AirlineCode Associated to the carrier.
Note: Example: VS as per the current implementation
Alphanumeric
M
<BookingID>
Booking Reference ID (PNR).
XML Example
<BookingRef>
    <BookingEntity>
        <Carrier>
            <AirlineDesigCode>VS</AirlineDesigCode>
        </Carrier>
    </BookingEntity>
    <BookingID>TRUZUO</BookingID>
</BookingRef>
Alphanumeric
M
<DeliveryStatusCode>
Status of the Service Delivery instance.
String
O
<OrderServiceAssociation>
Service Association details within the order.
XML Example
<OrderServiceAssociation>
    <PaxSegmentRef>
        <PaxSegmentRefID>SEG2</PaxSegmentRefID>
    </PaxSegmentRef>
</OrderServiceAssociation>
M
<PaxSegmentRef>

XML Example
<OrderServiceAssociation>
    <PaxSegmentRef>
        <PaxSegmentRefID>SEG2</PaxSegmentRefID>
    </PaxSegmentRef>
</OrderServiceAssociation>
M
<PaxSegmentRefID>
Reference to PaxSegmentID.
XML Example
<OrderServiceAssociation>
    <PaxSegmentRef>
        <PaxSegmentRefID>SEG2</PaxSegmentRefID>
    </PaxSegmentRef>
</OrderServiceAssociation>
M
<PaxRefID>
Pax referenceID
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG2</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV2</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
Alphanumeric
M
<ServiceID>
Unique Service Identifier.
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG1</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV1</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
Alphanumeric
M
<StatusCode>
Status of the Order Service Status instance
XML Example
<Service>
    <BookingRef>
        <BookingEntity>
            <Carrier>
                <AirlineDesigCode>VS</AirlineDesigCode>
            </Carrier>
        </BookingEntity>
        <BookingID>TRUZUO</BookingID>
    </BookingRef>
    <OrderServiceAssociation>
        <PaxSegmentRef>
            <PaxSegmentRefID>SEG1</PaxSegmentRefID>
        </PaxSegmentRef>
    </OrderServiceAssociation>
    <PaxRefID>ADULT_1</PaxRefID>
    <ServiceID>SV1</ServiceID>
    <StatusCode>CONFIRMED</StatusCode>
</Service>
Note:
  • CONFIRMED
  • REQUESTED
  • WAITLISTED
  • CANCELLED
Alphanumeric
O
<OwnerCode>
This will always be 'VS'.
Char(2)
M
<New>
  <DataLists>
  ...
  <DataLists>
  <Order>
    <OrderID>VS932TRUZUO25</OrderID>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-1</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>ADULT_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-2</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>YOUNG_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OrderItem>
        <OrderItemID>VS932TRUZUO25-3</OrderItemID>
        <OwnerCode>VS</OwnerCode>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG1</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV1</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
        <Service>
            <BookingRef>
                <BookingEntity>
                    <Carrier>
                        <AirlineDesigCode>VS</AirlineDesigCode>
                    </Carrier>
                </BookingEntity>
                <BookingID>TRUZUO</BookingID>
            </BookingRef>
            <OrderServiceAssociation>
                <PaxSegmentRef>
                    <PaxSegmentRefID>SEG2</PaxSegmentRefID>
                </PaxSegmentRef>
            </OrderServiceAssociation>
            <PaxRefID>CHILD_1</PaxRefID>
            <ServiceID>SV2</ServiceID>
            <StatusCode>CONFIRMED</StatusCode>
        </Service>
    </OrderItem>
    <OwnerCode>VS</OwnerCode>
  </Order>
</New>

<ReasonCode>
XML Snippet
Element
Details
DataType
M/O/C
<ReasonCode>
Reason code for the order change:
XML Example
<ReasonCode>100</ReasonCode>
Note:
  • 100: Schedule Change
  • 104: Payment time limit expiry
  • 106: No reason given
  • 111: Natural disaster
  • 114: Rebooked to Another flight
  • 116: Other
Integer
M
<ReasonCode>100</ReasonCode>

<OrderVersionNumber>
XML Snippet
Element
Details
DataType
M/O/C
<OrderVersionNumber>
Defines the version number of the current order.
XML Example
<OrderVersionNumber>2</OrderVersionNumber>
Integer
M
<OrderVersionNumber>2</OrderVersionNumber>




✈
